Multi-Story Circulation Type

KYUGIN INDUSTRIAL MACHINEY

We’ll protect the dignity of the building with state-of-the-art parking facility.

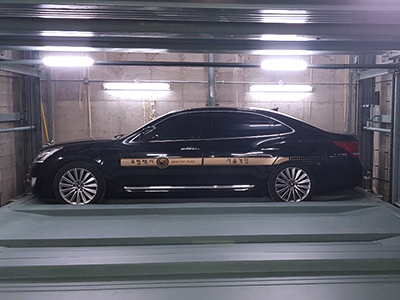

Introduction of Multi-Story Circulation Type

It is a parking system designed to park the vehicle by drive-in the vehicle from multi-story parking section, raising the palette vertically with a lift at both ends, and moving circulatory the consecutive pallets horizontally.

The multi-story circulation type is suitable for small and medium-sized buildings due to the highest spatial efficiency, and is divided into upper drive-in and direct drive-in types according to the location of drive-in and drive-out.

·Characteristics & Advantages

  • Since space efficiency is 8 times higher than self-drive-in type, it is able to utilize the narrow underground space.
  • It is possible to install up to 6 layers with state-of-the-art technology.
  • Applying the high-speed lifting type, as the lift speed has been very fast, the time of vehicle drive-in & drive-out is dramatically reduced.
  • It is a built-in turntable (upper drive-in), and so it is convenient due to forward drive-in and out.
  • Because of turn-key operation type, it is easy to operate.

·Standards Items

Type KMP
No. of Adaptable Vehicles Proportional to the site area
Adaptable Vehicles 5,100L x 1,850W x 1,600H
Weight of Adaptable Vehicles 1,850kg
Lift MOTOR 11~15 kw Geared Brake Motor
SPEED Aprox 20 ~ 25m/min
Traverse Moving MOTOR 3.75~5.5 kw Geared Brake Motor
SPEED Aprox 20m/min
Manipulation Ten Key
Stabilization Apparatus Failure Diagnosis Function
Front Guidance Lamp at The Entrance
Vehicle Positioning System at Drive-In Story
Fall Prevention System
OVER RUN Protection System
Power AC 220V, 380V, 3-Phase, 60HZ
